Line Profile Variations of a Be Star

This Cookbook recipe demonstrates how to simulate the spectral line-profile variations (lpv) of a pulsating Be star, using the MSG Python interface. Synthesizing a spectrum for a pulsating star involves constructing an ensemble of elements representing the stellar surface; subjecting these elements to perturbations from one or more modes; and then integrating the specific intensity over the elements visible to the observer. This process is similar to the disk integration in equation (6) of the MSG Fundamentals chapter, but a further complication is that one must correctly account for Doppler shifts arising from the motion of the elements along the line-of-sight.

The open-source BRUCE and KYLIE codes (Townsend, 1997) perform these tasks. BRUCE constructs and perturbs surface elements, while KYLIE then performs the specific intensity calculations and visible-disk integration. In this recipe the KYLIE functionality is re-implemented in Python.

Preparation

Download be-star-lpv.tar.bz2 and unpack it in your working directory. This archive contains the following items:

elements-* — surface element data produced by BRUCE
sg-6678.h5 — specgrid file covering the HeI \(\lambda 6678\) line profile [1]
input.bdf — BRUCE input file used to create elements-*

Note that input.bdf isn’t needed for the recipe; it’s included for those who wish to recreate elements-*, or are curious about their provenance.

Initialization

To start, import modules and set other parameters:

[1]:

# Import modules

import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
import scipy.io as si

import astropy.constants as con

import pymsg

# Set plot parameters

%matplotlib inline
plt.rcParams.update({'font.size': 16})

Create a SpecGrid

Next, create a pymsg.SpecGrid object for interpolating specific intensities:

[2]:

# Create SpecGrid object

specgrid = pymsg.SpecGrid('sg-6678.h5')

Define a Synthesis Function

Now define a function that synthesizes a light curve given the following parameters:

lam — wavelength abscissa array (Angstroms)
d — distance to star (meters)
bruce_file — name of BRUCE output file
specgrid — pymsg.SpecGrid object

This function is quite simple: it simply adds up the specific intensities from each surface element, appropriately Doppler-shifted and weighted by the elements’s projected area and the observer solid angle.

[3]:

def synthesize_spectrum(lam, d, bruce_file, specgrid):

    # Initialize the flux array

    n_lam = len(lam)

    F = np.zeros(n_lam-1)

    # Open the BRUCE output file

    with si.FortranFile(bruce_file, 'r') as f:

        # Read header

        record = f.read_record('<i4', '<f4')

        n_vis = record[0][0]
        time = record[1][0]

        # Read elements and accumulate flux

        for i in range(n_vis):

            Teff, V_proj, A_proj, g, mu = f.read_reals('<f4')

            # Evaluate specific intenensity

            x = {'Teff': Teff, 'log(g)': np.log10(g)+2.}

            dI = specgrid.intensity(x, mu, lam*(1+V_proj/con.c.value))

            # Accumulate flux

            F += A_proj * dI * (1./d)**2

    # Return the time and flux

    return time, F

Evaluate the Spectra

Using this function, evaluate a time-series of spectra:

[4]:

# Set up parameters

d = 10*con.pc.value

lam = np.linspace(6673, 6682, 101)
lam_mid = 0.5*(lam[:-1] + lam[1:])

n_time = 20

# Evaluate spectra

time = []
F = []

for i in range(n_time):

    bruce_file = f'elements-{i+1:03d}'

    result = synthesize_spectrum(lam, 10*con.pc.value, bruce_file, specgrid)

    time += [result[0]]
    F += [result[1]]

Plot the Spectra

As a final step, plot the spectra (with a vertical offset between times, to allow comparison):

[5]:

# Plot spectra

plt.figure()

cmap = mpl.colormaps['cool']

fig = plt.figure()

offset=0.2*(np.max(F[0]) - np.min(F[0]))

for i in range(n_time):

    plt.plot(lam_mid, 1E8*(F[i]+i*offset), color=cmap(i/(n_time-1)))

plt.xlabel('Wavelength (Angstrom)')
plt.ylabel('Flux (erg/cm^2/s/Angstrom)')

[5]:

Text(0, 0.5, 'Flux (erg/cm^2/s/Angstrom)')

<Figure size 640x480 with 0 Axes>

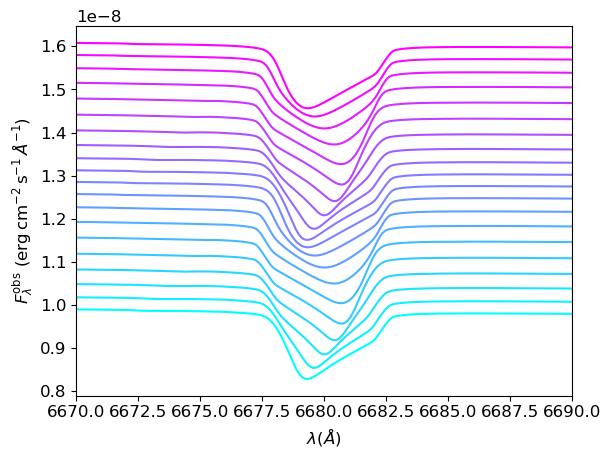

The lpv in the figure take the form of dips of enhanced absorption that travel across the line profile from blue to red. This is similar to the variations observed in pulsating Be stars (see, e.g., Štefl et al. 2003).
